Specifications

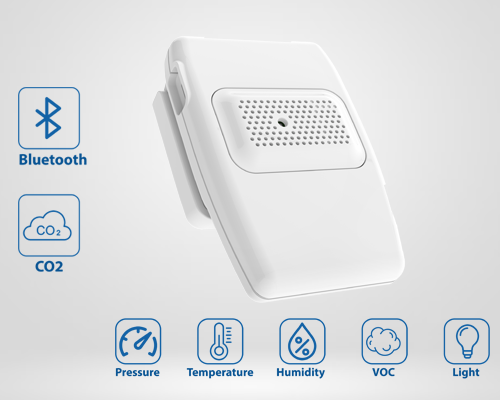

HibouAir Air Quality Monitor CO2 Sensor - SSD002/2B
CONNECTIVITY Bluetooth 5.1
ROLES Bluetooth v5.1 Peripheral
POWER Micro USB, Low power: Typ 35mA .
Possible to use external power bank for portable use
SENSORS
  • NDIR CO2 sensor
  • Fully calibrated and linearized
  • Temperature, range: 0…50°C Accuracy: ± 1°C
  • Humidity, range: 0…100% r.H. Accuracy: ± 3 % r.H.
  • VOC (Organic Compounds) : IAQ index & ppm
  • Pressure, range: 300…1100 hPa ± 0.6 hPa
  • Ambient light: resolution 100mLux
MEASUREMENT RANGE 400ppm - 10000ppm
ACCURACY +/- (30 ppm 3%)
MECHANICAL 73,2 mm (L) , 50 mm (W) 12,4 mm (D)
ENVIRONMENTAL Temperature: 0°C to 50°C
Humidity: 95%
Ingress Protection: IP22 (Indoor use and Outdoor with extra protection case)
MOUNTING Wall mounted holder.
CASE MATERIAL ABS
CERTIFICATION FCC & CE, RoHS compliant, halogen-free
COLORS White
PART NUMBER SSD002/2B
ACCESSORIES
  • HibouAir Sensor
  • HibouAir USB dongle (SSD005)
  • Power adapter with 3 meter cable
WARNING HibouAir contains NDIR based CO2 sensors with delicate optical systems. Special care needs to be taken during handling of the sensors. Mechanical stresses on the optical cavity could change physical properties of the sensor affecting the calibration and thus, resulting in reduced accuracy.

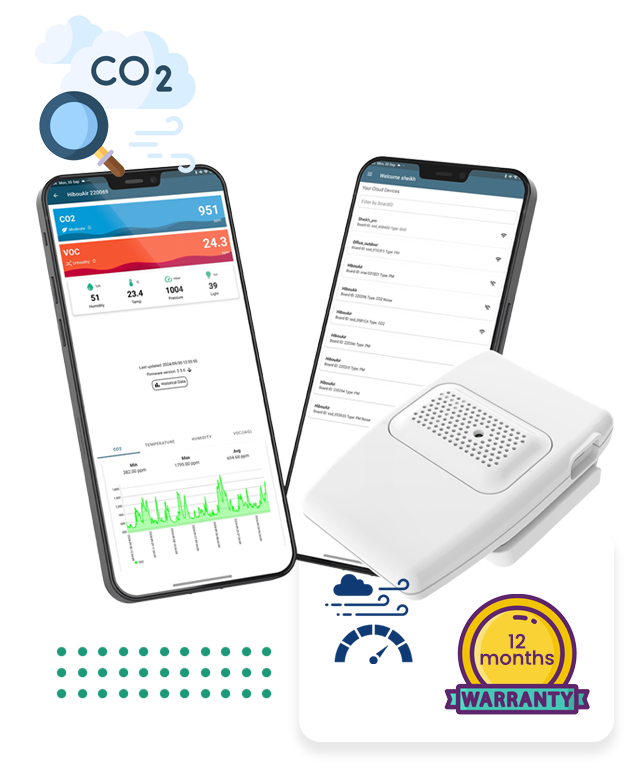

HibouAir - CO2 Air quality monitor
